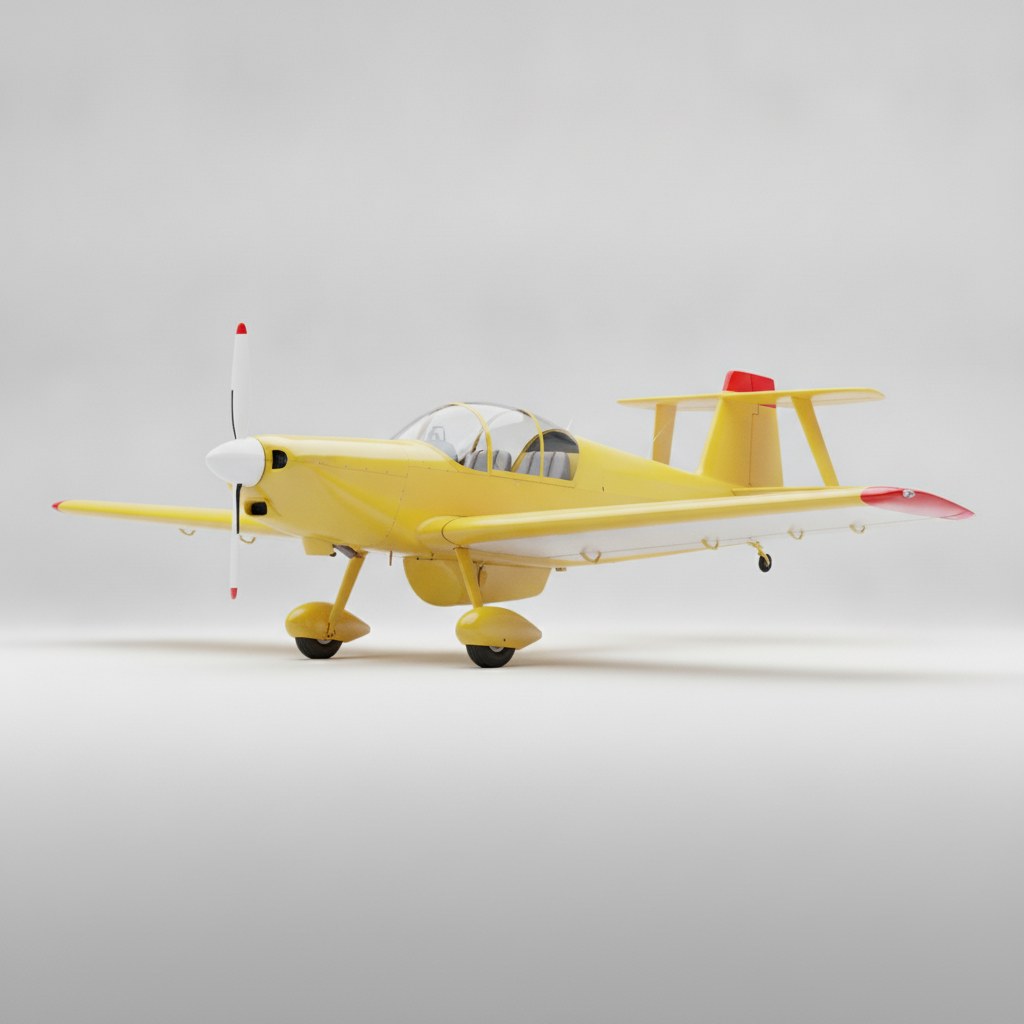

PZL-Okęcie (PZL Warszawa-Okęcie) PZL-126 Mrówka — agricultural

Overview

The PZL-126 Mrówka (Ant) was a Polish single-seat agricultural aircraft prototype that represented post-Cold War light aircraft development efforts in Eastern Europe.

Aircraft Information

ICAO Code
PZ26
Manufacturer
Pzl-Okęcie (pzl Warszawa-Okęcie)
Model
PZL-126 Mrówka
Aircraft Type
Fixed Wing Single Engine
Primary Role
Agricultural

Technical Data

Engine Type
Piston
Engine Model
Unknown modified variant
Production Years
1990-1990
Units Produced
2 prototypes only
First Flight
1990-04-20

The PZL-126 Mrówka (Ant) was a Polish single-seat agricultural aircraft prototype that represented post-Cold War light aircraft development efforts in Eastern Europe. First flown on 20 April 1990, it was a single-engine monoplane designed specifically for crop dusting and environmental monitoring operations. The aircraft featured a compact 7.6-meter wingspan and could carry 180 liters of fuel while maintaining a maximum takeoff weight of 600 kilograms. Built by PZL-Okęcie in Warsaw, only two prototypes were ever completed before the program ended without entering production.

Development and Design

The PZL-126 Mrówka emerged from Poland's efforts to modernize its agricultural aviation capabilities during the transition from communist rule in the late 1980s. PZL-Okęcie, the Warsaw-based manufacturer within the state-owned PZL group, conceived the aircraft as a specialized single-seat crop duster optimized for low-level agricultural work and environmental monitoring missions. The design team focused on creating a compact, efficient platform that could operate from short airstrips while carrying substantial fuel loads for extended spraying operations.

Development proved challenging, with the program reportedly abandoned in 1984 before being revived in the late 1980s. The design prioritized agricultural functionality over speed or range, with the aircraft's 160 nautical mile maximum range specifically tailored to typical crop dusting mission profiles.

Prototype Testing

The sole completed prototype, registered SP-PMA, took to the skies on 20 April 1990 from PZL Warszawa-Okęcie's facilities in Warsaw. This initial airframe underwent several modifications during its test program, including engine changes in 1994 when engineers fitted a modified powerplant producing 44.7 units of power, though whether this figure represented kilowatts or horsepower remains unclear from available documentation.

A second prototype, designated PZL-126P Mrówka 2001 and carrying registration SP-PMB with constructor number 00000002, was subsequently built. This aircraft represented an updated variant of the original design, though specific modifications between the two prototypes have not been documented. As late as 18 October 2019, SP-PMB was photographed at Warsaw-Babice Airport, confirming the survival of at least one example nearly three decades after the program's inception.

Technical Specifications

The Mrówka's dimensions reflected its specialized agricultural role. With a wingspan of 7.6 meters and overall length of 5.2 meters, the aircraft maintained compact proportions suitable for operations from small agricultural airstrips. The 2.8-meter height accommodated ground handling while keeping the center of gravity low for stability during low-level spraying passes.

The aircraft's 600-kilogram maximum takeoff weight included a substantial fuel capacity of 180 liters, providing adequate endurance for agricultural operations. The single-seat configuration maximized payload capacity for pesticides or other agricultural chemicals while minimizing structural weight and complexity.

The Manufacturer's Legacy

PZL-Okęcie, officially known as PZL Warszawa-Okęcie, had established itself as a significant producer of light aircraft and trainers throughout the post-World War II era. The company specialized in agricultural and training aircraft, including the successful PZL-104 Wilga series, which became one of Poland's most recognizable general aviation exports.

Following the political and economic transformations of the 1990s, PZL-Okęcie underwent privatization and restructuring. The company eventually evolved into Polskie Zakłady Lotnicze Sp. z o.o. (PZL Sp. z o.o.), operating under the influence of EADS, which later became Airbus. However, the modern iteration focuses primarily on aircraft maintenance and support services rather than developing new designs like the ambitious Mrówka.

Program Termination and Legacy

Despite the successful first flight and apparent functionality of the prototypes, the PZL-126 never progressed beyond the experimental stage. No production aircraft were ever built, and no commercial operators placed orders for the type. The program's termination likely resulted from the economic upheaval accompanying Poland's transition to a market economy, which affected many state-sponsored development projects.

The Mrówka's ICAO designator PZ26 classifies it as a landplane in the light wake turbulence category, reflecting its modest size and agricultural mission profile. While the aircraft never achieved commercial success, it represents an interesting footnote in Polish aviation history as one of the last indigenous aircraft designs to emerge from the country's state-controlled aviation industry.

Today, the PZL-126 Mrówka remains significant primarily as a historical curiosity, demonstrating the ambitious but ultimately unrealized efforts to develop specialized agricultural aircraft in post-communist Eastern Europe. The survival of at least one prototype at Warsaw-Babice Airport serves as a tangible reminder of this brief chapter in Polish aerospace development, when the country's aviation industry sought to adapt traditional manufacturing capabilities to emerging market demands.

Surviving aircraft

Notable museum examples:

  • Warsaw-Babice Airport, Warsaw, Poland
