SOCATA TBM-850

Fixed Wing Single Engine

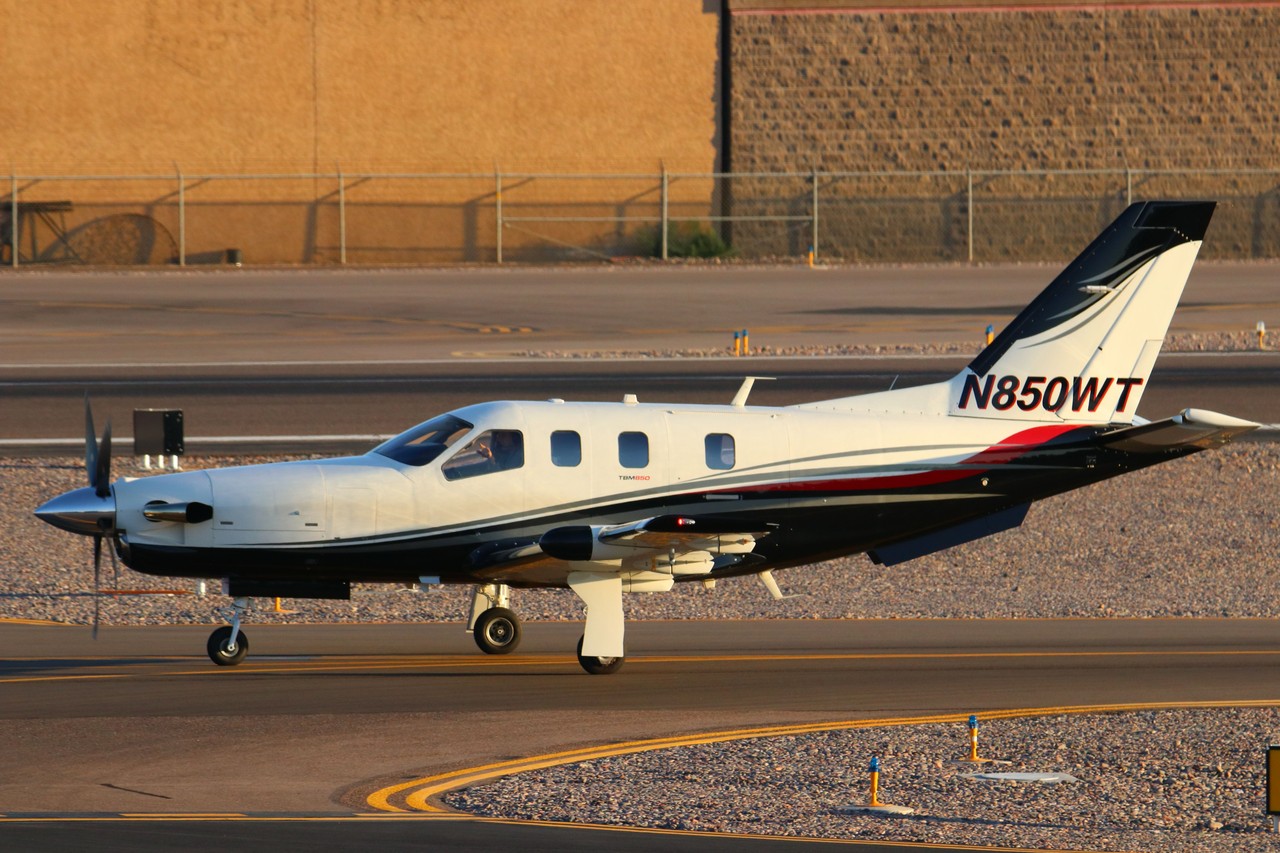

Picture of SOCATA TBM-850

Aircraft Information

ICAO Code
TBM8
Manufacturer
SOCATA
Model
TBM-850
Aircraft Type
Fixed Wing Single Engine
Primary Role
General Aviation

Technical Data

Engine Type
Turboprop
Engine Model
PT6A-66D
Production Years
2006-2013
Units Produced
338
First Flight
2006
Notable Operators
Private owners, Corporate operators, Fractional ownership programs

The SOCATA TBM-850 revolutionized single-engine turboprop aviation by delivering jet-like performance with turboprop efficiency for business and personal use. First introduced in 2006, it was a high-wing single-engine turboprop aircraft seating up to six passengers in a pressurized cabin. With a maximum speed of 307 knots and range of 1,730 nautical miles, the TBM-850 bridged the gap between traditional piston aircraft and light jets. SOCATA manufactured 338 examples at their Tarbes, France facility before production ended in 2013.

Service History

The TBM-850 established itself as the premier choice for high-speed single-pilot operations in business aviation. Unlike traditional airline transports, this aircraft served private owners, corporations, and fractional ownership programs that demanded the speed of a light jet without the complexity of twin-engine certification requirements. The pressurized cabin allowed operations up to 31,000 feet, enabling flights above most weather while maintaining the operational simplicity of single-engine flight.

The Manufacturer

SOCATA (Société de Construction d'Avions de Tourisme et d'Acrobatie) traced its heritage to Morane-Saulnier, founded in 1911. After nationalization following World War II, the company became part of Aérospatiale in the 1960s, focusing on light aircraft production. A pivotal moment came in the early 1980s when French investors connected to SOCATA acquired Mooney Aircraft, whose cabin-class designs directly influenced the TBM series development. EADS acquired SOCATA in 2008, briefly operating as EADS Socata before Daher purchased the company later that year. Today, Daher continues TBM production with advanced variants including the TBM 930 and TBM 960.

Design Innovation

Engineer Denis LeGrand began developing the TBM series on his drafting board at SOCATA's Tarbes facility in December 1986. The TBM-850, introduced twenty years later in 2006, represented the culmination of his vision for a high-performance single-engine turboprop. LeGrand's design objectives centered on combining jet-like speed and pressurized comfort with the operational economics and simplicity of turboprop power. The resulting aircraft featured a six-seat configuration optimized for business travel, with club seating and executive amenities rare in single-engine aircraft.

Engine & Technical Excellence

The heart of the TBM-850 was the Pratt & Whitney Canada PT6A-66D turboprop engine, derated to 850 shaft horsepower. This powerplant belonged to the legendary PT6 family, which entered production in 1963 and achieved over 55,000 units produced across all variants. The PT6A-66D's free turbine design enabled quick starts and reverse thrust capability, while its flat-rated power delivery maintained performance in high-altitude, high-temperature conditions. Mean time between overhaul exceeded 5,000 hours in many applications, establishing exceptional reliability standards for the demanding business aviation market.

Performance Characteristics

Measuring 35 feet 1 inch in length with a wingspan of 42 feet 8 inches, the TBM-850 achieved a maximum cruise speed of 307 knots true airspeed at altitude. The aircraft's service ceiling of 31,000 feet and initial climb rate exceeding 2,000 feet per minute provided jet-like performance profiles. Range capabilities of 1,730 nautical miles enabled non-stop flights between major business centers, transforming single-pilot high-speed travel. The pressurized cabin maintained comfortable conditions equivalent to 8,000 feet when flying at maximum altitude.

Pilot Appeal

The TBM-850 attracted pilots seeking maximum performance without the complexity of multi-engine operations. Single-pilot certification requirements were significantly less demanding than those for comparable twin-engine aircraft, while the PT6 engine's reliability record provided confidence for flights over challenging terrain or water. The aircraft's advanced avionics and autopilot systems reduced pilot workload, enabling effective single-pilot instrument flight rules operations in demanding weather conditions.

Production Legacy

SOCATA produced exactly 338 TBM-850 aircraft between 2006 and 2013 at their Tarbes manufacturing facility. This seven-year production run established the aircraft as a benchmark for high-speed single-engine turboprops, directly leading to successor models in the TBM 900 series. By July 2023, total TBM family production exceeded 1,000 aircraft, with the TBM-850 representing a crucial evolutionary step in the series. The aircraft's reputation for durability and performance ensured strong resale values and continued operational relevance well beyond its production period.

Current Operations

Many TBM-850 aircraft remain in active service today, benefiting from Daher's continued support network and parts availability. The type's reputation for combining speed, efficiency, and single-pilot capability sustains demand in the pre-owned market. While exact numbers of airworthy examples are not publicly tracked, the aircraft's robust construction and proven powerplant suggest the majority of the 338 built continue flying regular missions worldwide.
